Exam 3 Chem 3045x

Correlation tables for IR, ¹H-NMR and ¹³C-NMR were attached on the last page of the exam. When you do this practice test, you may use the tables in the text for IR absorption freq., H-NMR chemical shifts, and C-NMR chemiscal shifts.

Time of the exam: 50 minutes.

Question 1: 10 points

Question 2: 10 points

Question 3: 20 points

Question 4: 20 points

Question 5: 30 points

Question 6: 10 Points

Total: 100 Points

(a) 1-chlorohexane or cyclohexyl chloride

(b) 1-bromopentane or 1-fluoropentane

2.(10 Points) Under proper conditions alkyl bromides (RBr) react with potassium alkoxides (KOR') to yield ethers (ROR'). Suppose you which to prepare the two ethers A and B given below from an alkyl bromide and a potassium alkoxide. Select the combination of a specific alkylbromide and and a specific potassium alkoxide which would be most effective in preparing the following ethers. Explain the reason for your selection.

A

B

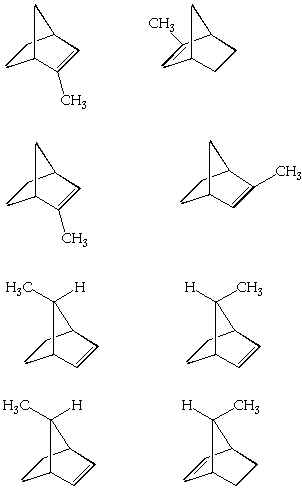

3.(20 points). Give the structural relationship between the following pairs as one of the following (a) constitutional isomers, enantiomers, diastereomers or identical.

PAIRS	RELATIONSHIP

4.(20 Points). Draw a Lewis structure consistent with the following NMR spectra and molecular compositions.

(a) Molecular composition C₈H₁₈; ¹H-NMR consists of a singlet at d = 0.9 ppm

(b) Molecular composition C₈H₈; ¹H-NMR consists of a singlet at d = 5.8 ppm

(c) Molecular composition C₂H₃Cl₃; ¹H-NMR consists of a singlet at d = 2.7 ppm

(d) Molecular composition C₃H₅Br; ¹³C-NMR consists of three signals at

d = 33 ppm (triplet), d = 118 ppm (triplet) and d = 134 ppm (doublet).

(e) Molecular composition C₃H₅Br; ¹³C-NMR spectrum consists of two signals at

d = 12 ppm (triplet) and 17 ppm (doublet).

5.(30 Points. 10 Points for each spectrum) Suggest a structure that is consistent with the IR, ¹H-NMR and ¹³C-NMR spectra shown on the following pages for the molecular compositions A = C₅H₁₀O, B = C₆H₁₀ and C = C₅H₁₂O. Indicate briefly how each structure is consistent with each spectra. The number of protons responsible for each signal is indicated under or next to the signal on the spectrum.

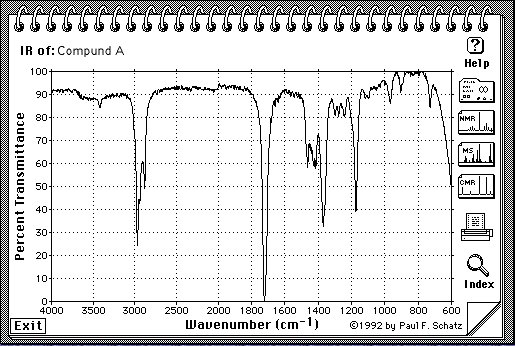

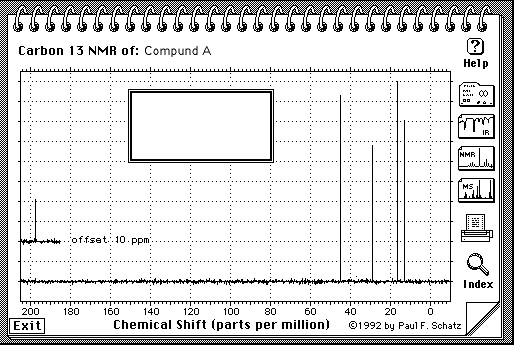

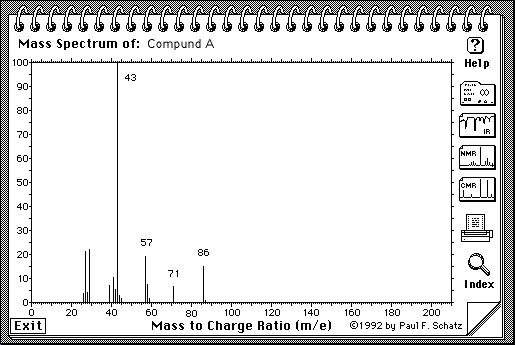

A = C₅H₁₀O

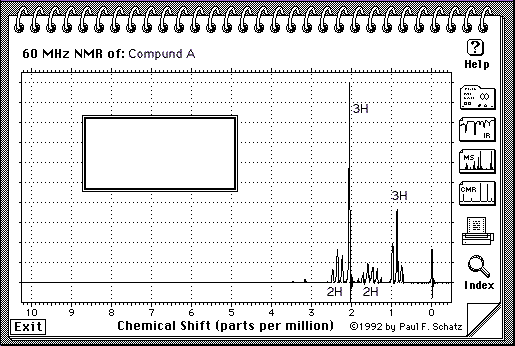

Note: H-NMR: The number of protons for each peak is given on the spectrum:

The suggested structure for A is

My reasoning for suggesting the structure for A:

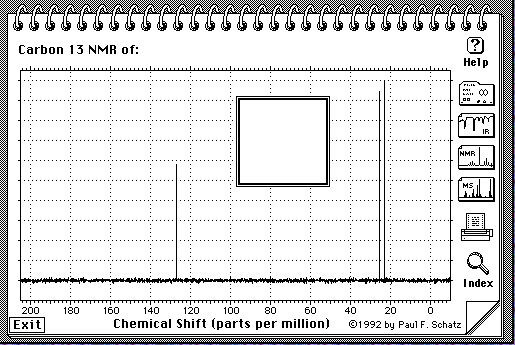

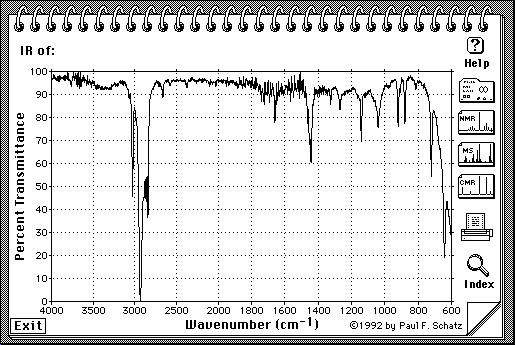

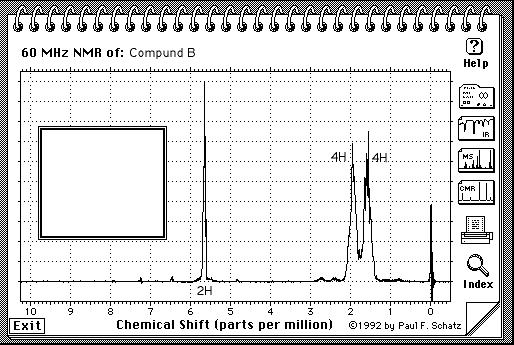

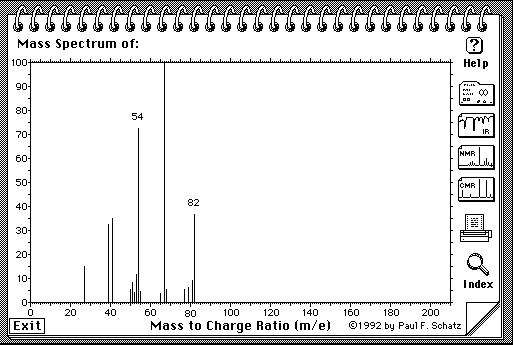

The suggested structure for B is

My reasoning for suggesting the structure of B is

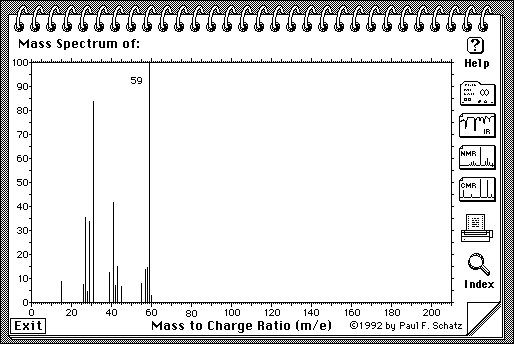

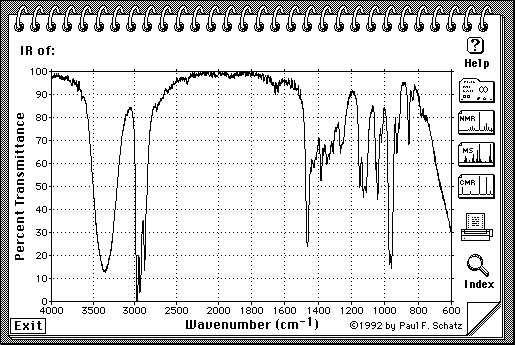

The suggested structure for C is

My reasoning for suggesting the structure of C is

6.(10 Points) From your knowledge of the theory of signal intensities in infrared spectroscopy, predict whether the symmetric or the antisymmetric stretch of carbon dioxide will be more intense in the infrared spectrum of this molecule and indicate your reasoning.

Exam 4 Chem 3045x (Don't worry about Q3-5 for friday's exam)

1. (10 Points). Consider each of the following structures. Which are Huckel aromatic compounds? Explain your reasoning for full credit.

2. (10 Points). Use Huckel theory to explain why the following hydrocarbon possesses an unusually large dipole moment for a hydrocarbon. Which ring possesses the negative dipole and which possesses the positive dipole?

3. (10 Points). Treatment of the allylic alcohol A with acid causes it to rearrange to the isomer B. Suggest a plausible mechanis for the rearrangement.

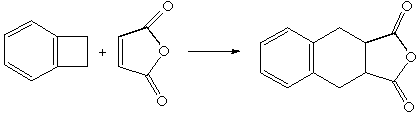

4. (10 Points) Suggest a mechanism for the following overall reaction.

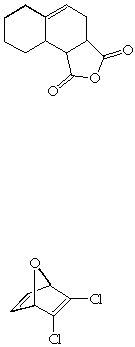

5. (10 Points). Suggest structures of the diene and dienophile you would employ to synthesis the following Diels Alder products.

6. (30 Points). Write equations showing how you could prepare each of the following from benzene or toluene an any other necessary organic or inganic reagents. If an ortho and para mixture is formed in any step of your synthesis you may assum that the two isomers may be separated and that is not a problem in the overall synthesis.

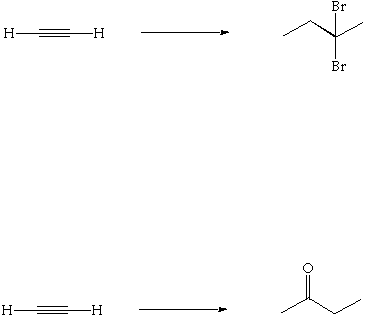

7. (20 Points). Starting with acetylene show how you would accomplish the following syntheses. You may use any organic or inorganic reagents in addition to acetylene.
